IPS-20R Infrared Gate Photo Eye Sensor 20m IP66 Adjustable Safety Beam for Automatic Gate Garage Door Barrier and Access Control

Name: IPS20R Infrared Gate Photo Eye Sensor 20m IP66 Adjustable Safety Beam for Automatic Gate Garage Door Barrier and Access Control
Brand: JUTAI
Price: 1 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union,Paypal

Model Number : IPS-20R

Detection Distance : 20m

Certification : CE, FCC

Size : 113*46.79*47.72mm

MOQ : 1

Delivery Time : 5 - 8 working days

Power Consumption : 30mA @ 12V DC

Price : Negotiation

Output Contact : N.O. / N.C. / COM Potential-Free Relay

Place of Origin : China

Protection Rating : IP66

Supply Ability : 1000 pieces per month

Brand Name : JUTAI

Receiver Power : 12 - 24V AC 12 - 30V DC

Packaging Details : Carton

Contact Now

IPS-20R Infrared Gate Photo Eye Sensor 20m IP66 Adjustable Safety Beam

IPS-20R 180° Adjustable Infrared Gate Safety Photocell Sensor 20m IP66 Photo Eye for Automatic Gate Barrier Garage and Industrial Door

Product Overview

The IPS-20R is a professional infrared through-beam safety photocell designed for automatic gates, parking barriers, garage doors, industrial doors and access control systems. Unlike conventional fixed-angle photocells, the IPS-20R features a 180° adjustable mounting structure, allowing the transmitter and receiver to be aligned more easily when installation surfaces are not directly facing each other. This makes the sensor especially suitable for gate posts, walls, angled entrances and retrofit projects where conventional photocell alignment may be difficult.

Key Features

180° Adjustable Installation - Flexible beam alignment for offset gate posts, angled walls, and various gate types
20m Infrared Detection - Maximum detection range suitable for residential and commercial applications
IP66 Outdoor Protection - Weather-resistant housing for outdoor gate, parking and industrial environments
Fail-Safe Relay Output - N.O., N.C., and COM potential-free relay contacts for flexible integration

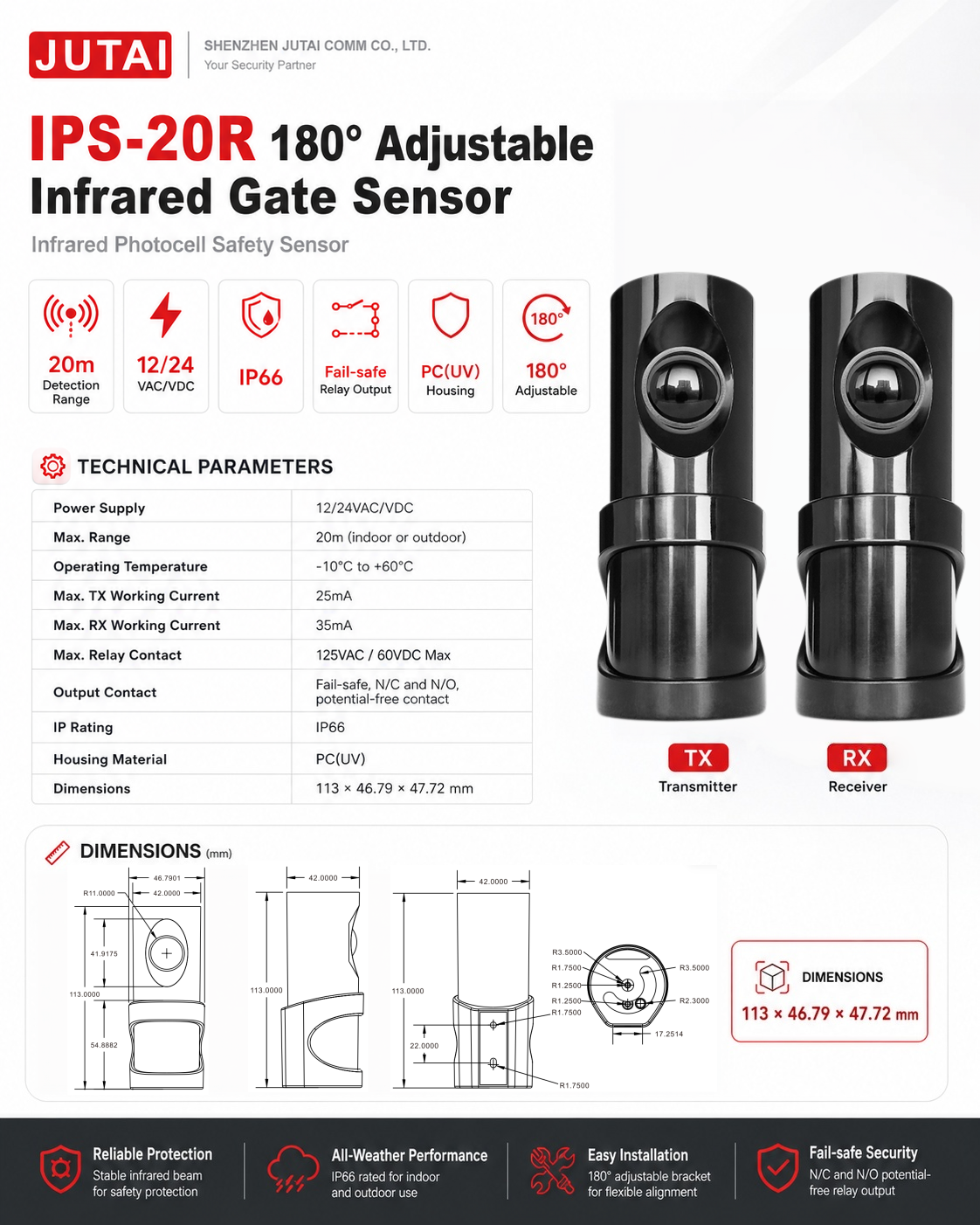

Technical Specifications

Parameter	Specification
Model	IPS-20R
Product Type	Infrared Gate Safety Photocell
Detection Principle	Infrared Through-Beam
Adjustable Angle	180°
Detection Distance	Up to 20m
Power Supply	12/24VAC/VDC
Operating Temperature	-10°C to +60°C
TX Working Current	Max. 25mA
RX Working Current	Max. 35mA
Relay Contact	Max. 125VAC / 60VDC
Output	N.O. / N.C. / COM Potential-Free Relay
Protection Rating	IP66
Housing Material	PC (UV)
Dimensions	113 * 46.79 * 47.72mm
Configuration	TX + RX

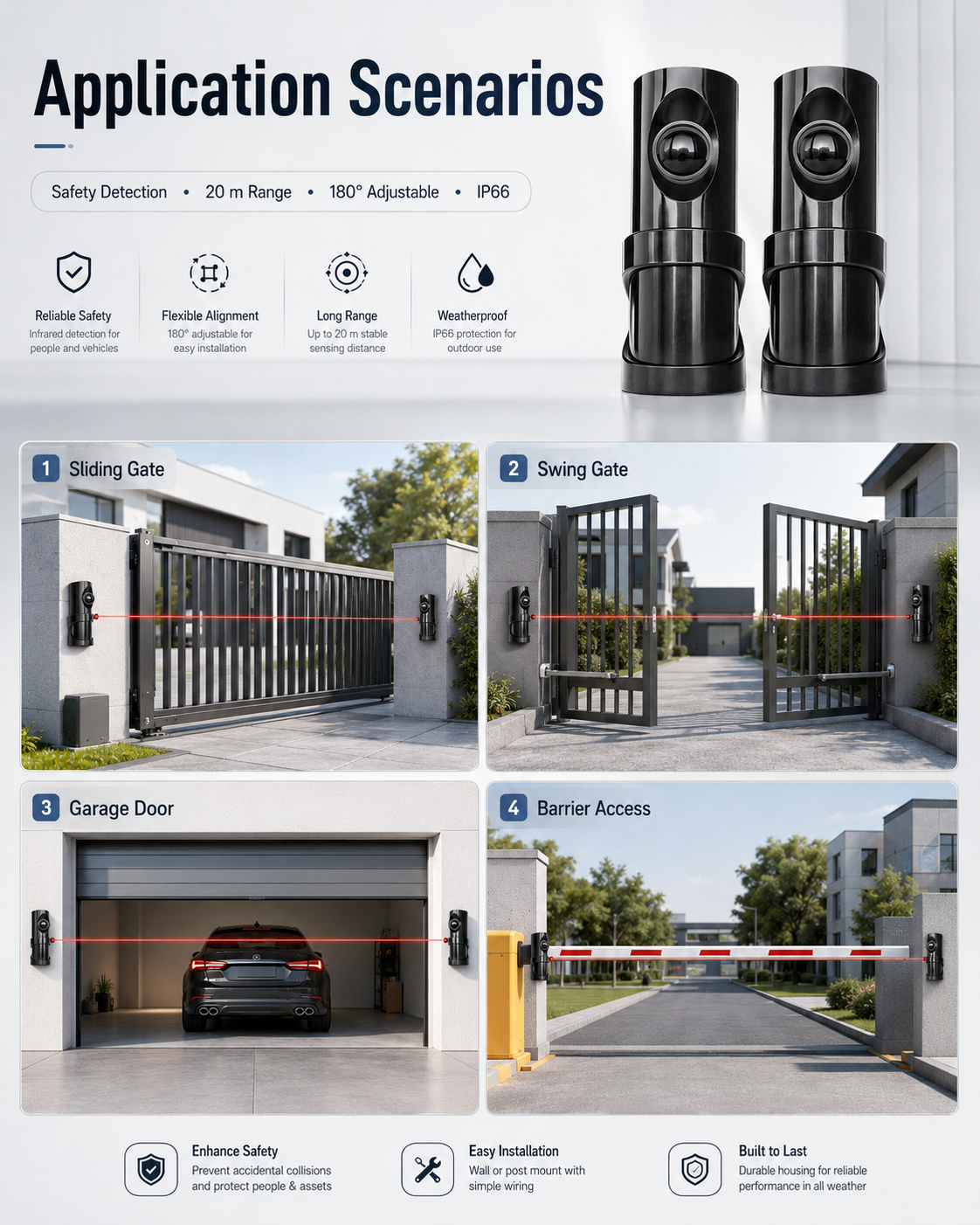

Applications

Automatic Sliding Gate
Swing Gate
Parking Barrier Gate
Garage Door
Industrial Door
Roller Shutter Door
Automatic Entrance Gate
Residential Gate Automation
Commercial Parking Entrance
Vehicle Access Control
Pedestrian Access Safety
Warehouse Entrance

Product Images

Installation Instructions

Connection Diagram
