Brand Name : JUTAI
Model Number : IS-30R
Certification : CE, FCC
Place of Origin : China
MOQ : 1
Price : Negotiation
Payment Terms : T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability : 1000 pieces per month
Delivery Time : 5 - 8 working days
Packaging Details : Cartoon
Receiver : 12 - 24V AC 12 - 30V DC
Rotation Angle : 180 Degree
Receiver Power Consumption : 30mA @ 12V DC
Transmitter Battery Life : Minimum 2 Years
Specified Operating Distance : 30m
Output Contact : Fail-Safe, N/C and N/O, Potential Free Contact
Size : 113*46.79*47.72mm
Waterproof : IP66
Weatherproof Sunproof Wireless Infrared Photocell Rotation 2 Years Battery Life 30m
Product Name: IS-30R External Rotation Wireless Infrared Gate Sensor

  Overview: The IS-30R External Rotation Wireless Infrared Gate Sensor revolutionizes gate safety with its advanced features and easy installation. With a 180-degree external rotation capability, wireless operation, and robust construction, it ensures reliable detection and enhanced security for gate automation systems.

  Key Features:
| Feature | Details |
|---|---|
| External Rotation, 180 Degrees | Effortless alignment simplifies installation and reduces labor costs. |
| Wireless and Battery-Operated Transmitter | Saves time and money, eliminating the need for wiring and offering flexibility in installation. |
| 30 Meters Operating Range | Provides ample coverage, making it suitable for various entrance gate applications. |
| Ant-Proof and Weather-Resistant Enclosure | Ensures reliable operation in diverse environmental conditions. |
| Audible Feedback for Easy Setup | Simplifies installation procedures with audible battery-low indication. |
| Low Power Consumption | Offers greater efficiency and longer battery life for reliable gate safety. |
| Compatibility with Intruder-Detection Alarms | Bolsters perimeter security measures with seamless integration. |
| Built-in Laser Beam Alignment System | Facilitates precise positioning for quick and easy installation. |

  Why Choose IS-30R:
IS-30R External Rotation Infrared Safety Beam Specification:

| Parameter | Specification |
|---|---|
| Power Supply | 12-24VAC, 12-30VDC |
| Transmitter | 2 x AAA alkaline batteries (Supplied) |
| Receiver | 12-24VAC, 12-30VDC |
| Rotation Angle | 180 Degree |
| Receiver Power Consumption | 30mA @ 12VDC |
| Transmitter Battery Life | Minimum 2 years |
| Battery Low indication | Audible Beep |
| Specified Operating Distance | 30m |
| Alignment | Automatic-im'@ 10m (circular area - assumes parallel surface) |
| Output Contact | Fail-safe, N/C and N/O, potential free contact |
| Output Contact Rating | 3A @ 30V DC Non-inductive |
| Operating Temperature | -20°C - +60°C |
| Operating Humidity | 0 - 90% Non-condensing |
| Degree of Protection | IP66 |
| Housing Material | PC (UV) |
| Size | 113 x 46.79 x 47.72mm |







Enhanced Security and Easy Installation with Wireless Rotating Infrared Sensor

  Introduction: Experience heightened security and effortless installation with our Wireless Rotating Infrared Sensor. Engineered for convenience and reliability, this innovative sensor offers a range of features designed to streamline setup and enhance security measures.

  Key Features:
External Rotation, 180 Degrees:
Wireless and Battery-Operated Transmitter:
30 Meters Operating Range:
Ant-Proof and Weather-Resistant Enclosure:
Audible Feedback for Easy Setup:
Low Power Consumption:
Compatibility with Intruder-Detection Alarms:
Built-in Laser Beam Alignment System:
Conclusion:
  Upgrade your security measures with our Wireless Rotating Infrared Sensor. From enhanced security features to hassle-free installation, this sensor offers everything you need for reliable and efficient perimeter protection.






|   |

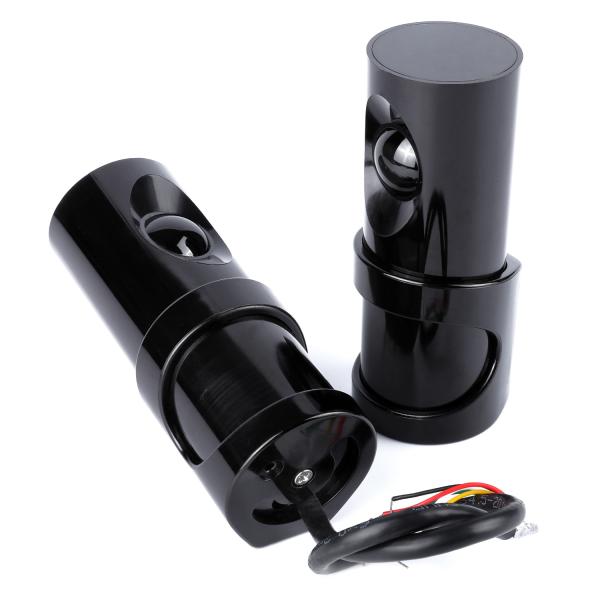

| Weatherproof Sunproof Wireless Infrared Photocell 180 Degree Rotation Images |
